Fremantle LX Motorhome
Luxury and Innovation for the Ultimate Journey
NEW MY25 MODEL AVAILABLE
Best Selling Motorhome Newcastle
Fremantle LX Motorhome – Two slide out rooms
SLEEPS 2 - 6
Light rigid licence
Composite Sandwich Panel
Dual Slide out
x3 Smart TV
Washer/Dryer
X3 Lithium
Solar
48v system
The Avida Fremantle LX motorhome range boasts innovation and luxury throughout, matched with the reliable Iveco 70C-21 E6 chassis.
Two large slide out rooms – increasing your living and bedroom space with the touch of a button.
- Spacious Living with Dual Slide-Outs
- Built on a Reliable Foundation
- Thoughtful Design
Gallery

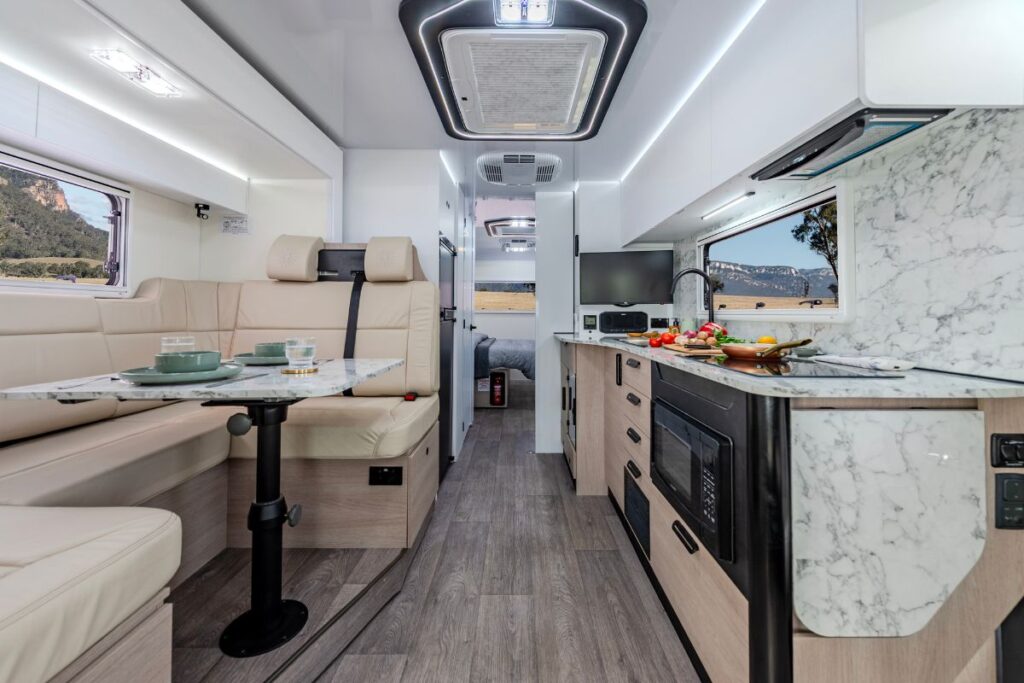

Step Inside and Explore the Fremantle LX Motorhome
Experience the Avida Fremantle LX motorhome with our collection of exterior, interior and lifestyle images and videos.
- All
- Exterior
- Interior

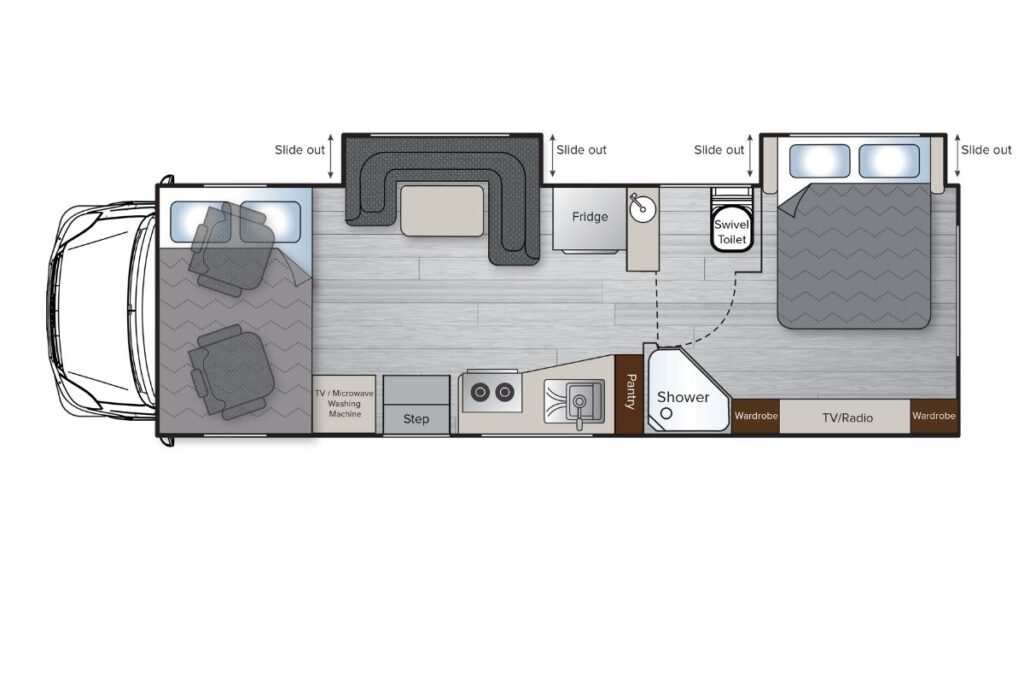

Floorplan
Find Your Space
The Avida Fremantle LX motorhome range currently features one floorplan. The model is available in a C class, and has two slide-out rooms.
Specifications and Features
Crafted for Comfort, Built for Adventure
The Fremantle LX motorhome range is innovation and luxury throughout, an abundance of thoughtful features enhance your enjoyment and experience, space to relax and move without restriction.
See what makes the Fremantle LX different to the other motorhomes on the road. Jam packed with plenty of features and optional extras to cater for all lifestyles.
E-Model – Gas Free / 48 Volt Electrical
E-Models – Advanced Gas-Free Innovation
The most advanced expression of Avida’s E-Model range, these models are fully gas-free and equipped with a powerful 48-volt electrical system. This smart technology delivers efficient energy management, enhanced off-grid capability and a quieter, more sustainable travel experience.
Designed for those who want to stay longer, travel further and reduce their environmental footprint, E-Models with 48-volt electrical systems combine cutting-edge innovation with Avida’s trusted quality and nationwide support.
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Air Conditioner - Roof mounted x2 | ✓ |
| Alarm system – RVsecure / Platinum X | ✓ |
| Awning - electric with LED light | Optional |
| Awning - roll out with LED light | ✓ |
| Awning - slide out awning x2 | ✓ |

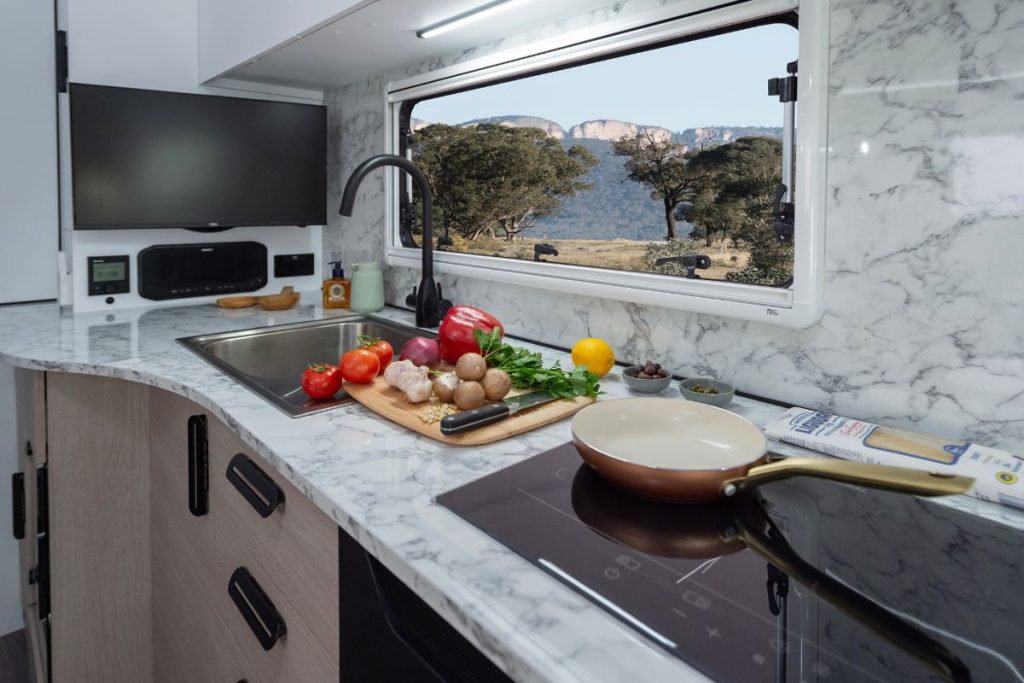

| Cooktop - induction with 2 position | ✓ |

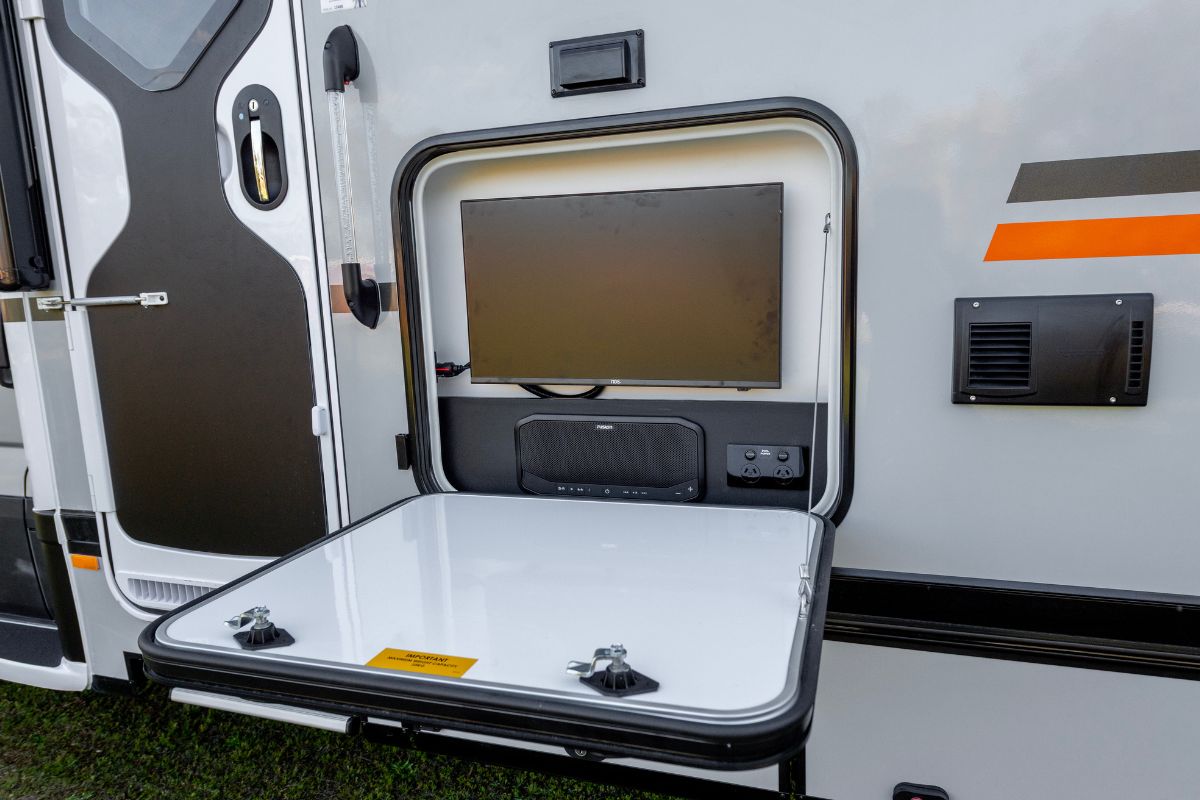

| External entertainment unit with radio, speakers, table, 12V & 240V power & Smart TV | ✓ |
| Fridge / Freezer - compressor | ✓ |
| Gas free model | ✓ |
| GPS Vehicle Tracker – RVsecure / LOD (Location On Demand) | ✓ |
| Microwave - multi functional with airfryer, convection oven and grilling | ✓ |
| Next generation Avida 48V Electrical System | ✓ |
| Radio: External - Bluetooth All-In-One Audio | ✓ |
| Radio: Internal - Chassis & Bluetooth All-In-One Audio | ✓ |
| Reverse camera - Dual cameras | ✓ |
| Starlink ready connections | ✓ |
| TV - Smart TV bedroom | ✓ |
| TV - Smart TV external | ✓ |
| TV - Smart TV living room | ✓ |
| Vacuum cleaner - Dyson | ✓ |

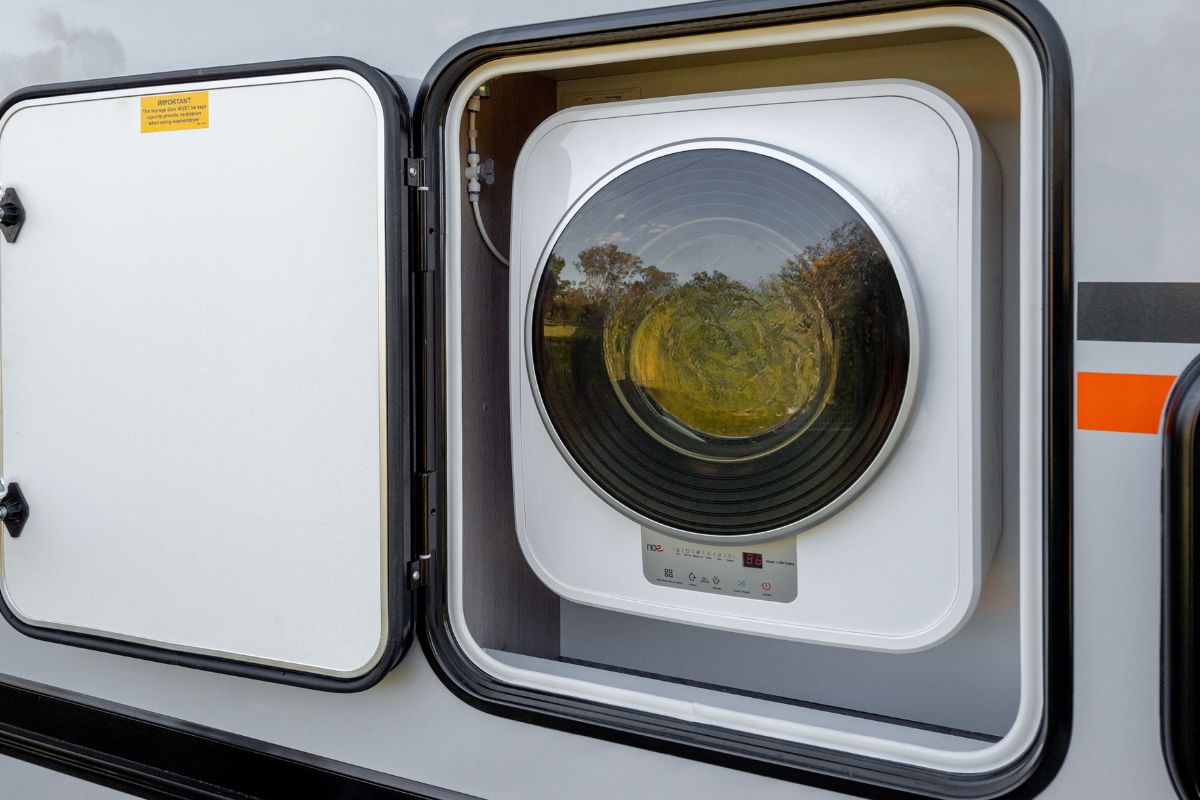

| Washing machine - washer/dryer | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Bed - Island (1530 x 1910mm) and Bed - over cabin (1370 x 1910mm) | ✓ |
| Bedhead - Premium upholstered | ✓ |
| Benchtop extension | ✓ |
| C Type storage - replacing the bed in the luton | Optional |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Curtains and safety net for bed over cabin | ✓ |
| Dinette bed conversion - cushion infill & support rails | Optional |
| Dinette replacing club lounge - total 4 seatbelts | Optional |
| Dinette replacing club lounge – additional 2 seat belts (total 6) | Optional |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Floor - one piece floor | ✓ |
| Hatch - Bathroom with 12v fan | ✓ |
| Hatch - with feature pelmet & lighting | ✓ |
| Hot Water System - Diesel Combi hot water and air heater | ✓ |
| Ladder for bed over cabin | ✓ |
| Magazine holder | ✓ |
| Mat - Removable cabin mat - carpet | ✓ |

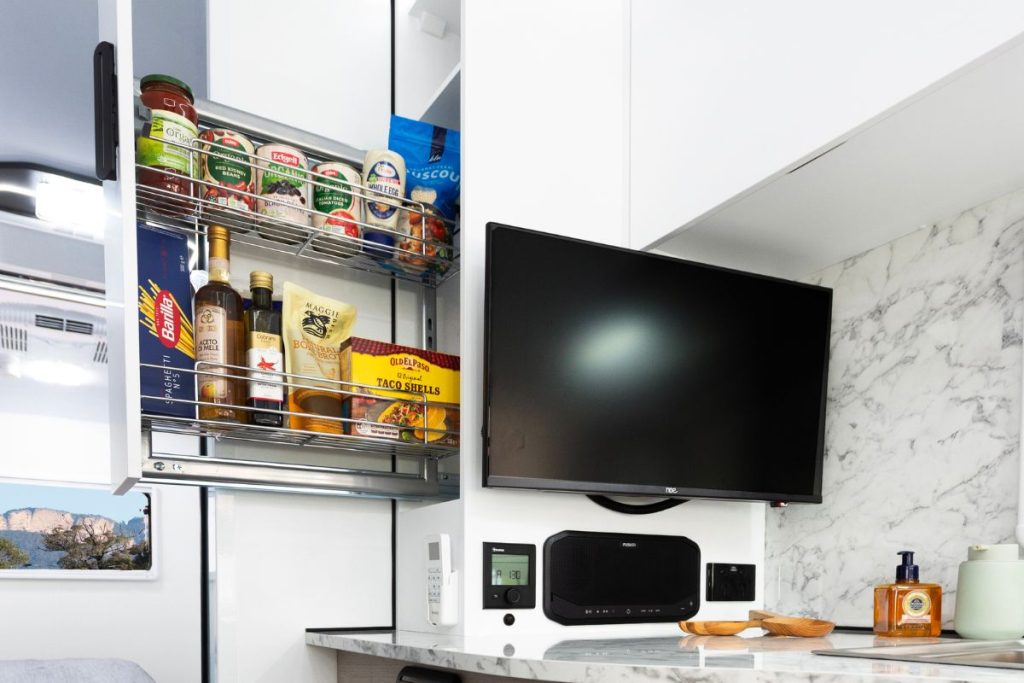

| Pantry x3 | ✓ |
| Privacy screens - windscreen and front doors | ✓ |
| Seatbelts - 4 | ✓ |
| Seatbelts - Child restraints - 2 | ✓ |
| Seating - Club lounge & swivel chassis seats | ✓ |
| Shower | ✓ |
| Slide out - For extra living space x2 | ✓ |
| Storage - internal | ✓ |
| Table - Large dining table | ✓ |
| Toilet - ceramic bowl with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| Upholstery - Leather with embroidered logo | ✓ |
| Wardrobe | ✓ |
| Water filter tap | ✓ |
| Window in bathroom | ✓ |
| Windows - double glazed with concertina style blind and fly screen | ✓ |
| Windows in Luton peak | ✓ |
| Wine storage cabinet | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Awning light | ✓ |
| BBQ Storage | ✓ |
| Entry door - Four point lock & security screen | ✓ |
| Entry door grab handle & light | ✓ |
| Entry step - electric | ✓ |
| Exterior colour highlights - Black | ✓ |
| Mud flaps - front & rear wheels | ✓ |
| Shower - external with hot and cold water | ✓ |
| Table - Integrated with entertainment unit | ✓ |
| Walls – External Grey | ✓ |
| Walls – External White | Optional |
| Wheels - Dress rims | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Battery / Inverter - 10.2kWh battery pack, 5000VA 48v Inverter (chargers: 280A battery & 125A DC/DC) | ✓ |
| Battery kit upgrade - 15.4kWh battery pack, 5000VA 48v Inverter (chargers: 280A battery & 125A DC/DC | Optional |
| Battery shunt | ✓ |
| Lighting - Additional feature LED lighting | ✓ |
| Lighting - LED & Mood lights | ✓ |
| Lighting - Reading lights with USB & USB-C | ✓ |
| Power point - 240 volt external | ✓ |
| Safiery Star Power | ✓ |
| Solar MPPT system with regulator - 1000w | ✓ |
| Victron Cerbo | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Earth leakage protector - 240V | ✓ |
| Entry step warning buzzer | ✓ |
| Fire extinguisher x2 | ✓ |
| LP gas leak detector | ✓ |
| Smoke detector | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Chassis | Iveco 70C-210 HP |
| Chassis Voltage | 12V |
| Driver's Licence | LR |
| Engine | 4-cylinder, Turbo Diesel |
| Engine Displacement | 2998cc |
| Exterior Height | 3230mm |
| Exterior Length | 9200mm |
| Exterior Width | 2455mm |
| Fuel Tank | 100L |
| Fuel Type | Diesel |
| Gross Combined Mass (GCM) | 10500kg |
| Gross Vehicle Mass (GVM) | 7200kg |
| Interior Height | 2015mm |
| Power | 155kW @ 3500rpm |
| Torque | 470Nm @ 1500rpm |
| Towing Capacity | 3500kg |
| Transmission | Automatic (8 speed) |
| Type | C-Type (Bed over cabin) |
| Water (Fresh) | 300L |
| Water (Grey) | 100L |
| Wheelbase | 5100mm |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Tow bar & wiring - 3500kg | Optional |
| Upholstery - Chassis seats - Avida upholstery | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| 60 months Capped Price Servicing | ✓ |
| 60 months Roadside Assistance (Chassis) - Limited time | ✓ |
| 60 months Structural Guarantee | ✓ |
| 60 months Warranty (Avida house) - Limited time | ✓ |
| 60 months Warranty (Chassis) - Limited time | ✓ |
| Australian Made | ✓ |
| Compliance - Certified weight certificate | ✓ |
| Compliance - RVMAP-accredited manufacturer | ✓ |
| Facebook support group | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners' personal login page - Experience Hub | ✓ |
| Service Schedule (Avida house) - every 12 months | ✓ |
| Service Schedule (Chassis) - every 12 Months, 20000 km | ✓ |
Compare Vehicles
Need Help Choosing Your Next Motorhome?
Australian Owned, Australian Built
The Avida Difference
Experience the Avida Fremantle motorhome with our industry leading support. Peace of mind with a customer relations team, over 100 accredited service locations and factory trained dealer network.
Unique Construction
Avida’s Unique construction advantages*:
- Light weight sandwich panel
- Dent & hail resistance fibreglass finish
- One piece floor, walls and roof
- Protective sheeting underside
- Highest insulation rating on the market
- Strong enough to walk on the roof
*Excludes campervans
Over 100 Accredited Service Locations
3-year Factory Backed Warranty
Customer support is paramount at Avida and that’s why every new Avida has a very important attribute we simply call “peace of mind” with our market leading 3 year factory backed warranty.
Free Roadside Assistance
Avida Roadside Assistance is provided by the chassis supplier for their 24 hour, seven day a week roadside assistance program to address your needs in the unlikely event of your RV breaking down
5-year Structural Guarantee
Avida offers a structural guarantee on the RV body of each new Avida for a period of 5 years from the date of delivery to the original purchaser as outlined in the Avida owners manual.
Accredited RVMAP Manufacturer
The RVMAP “Accredited” Badge on an RV is the ultimate proof of compliance – only Members who have attained RVMAP Accreditation are entitled to display it. Avida is a proud RVMAP manufacturer.
